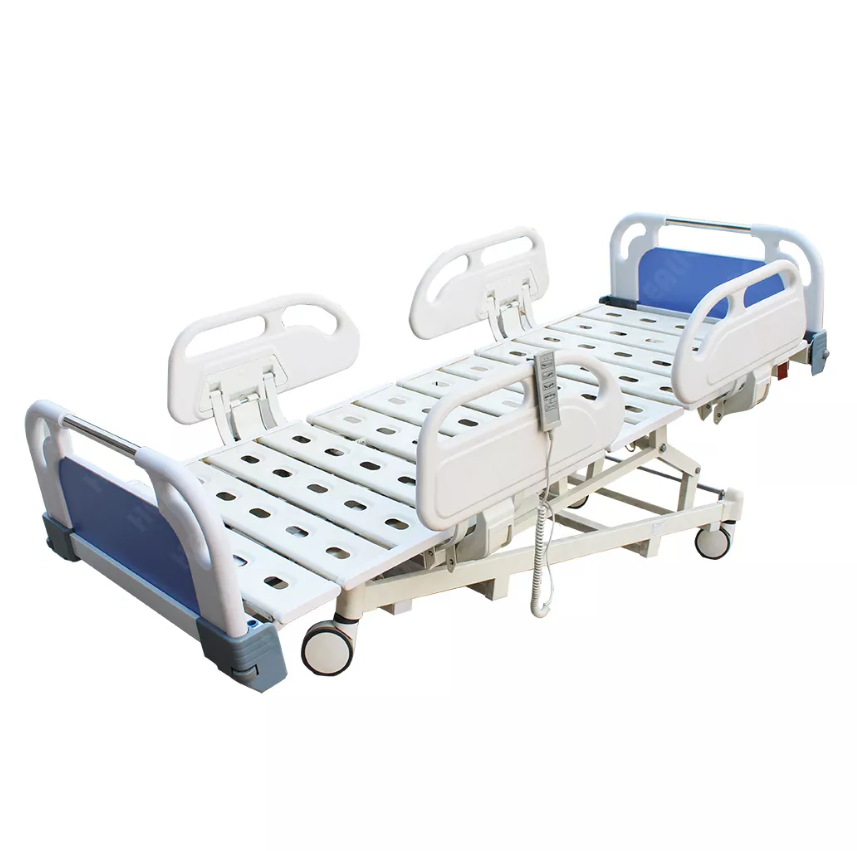

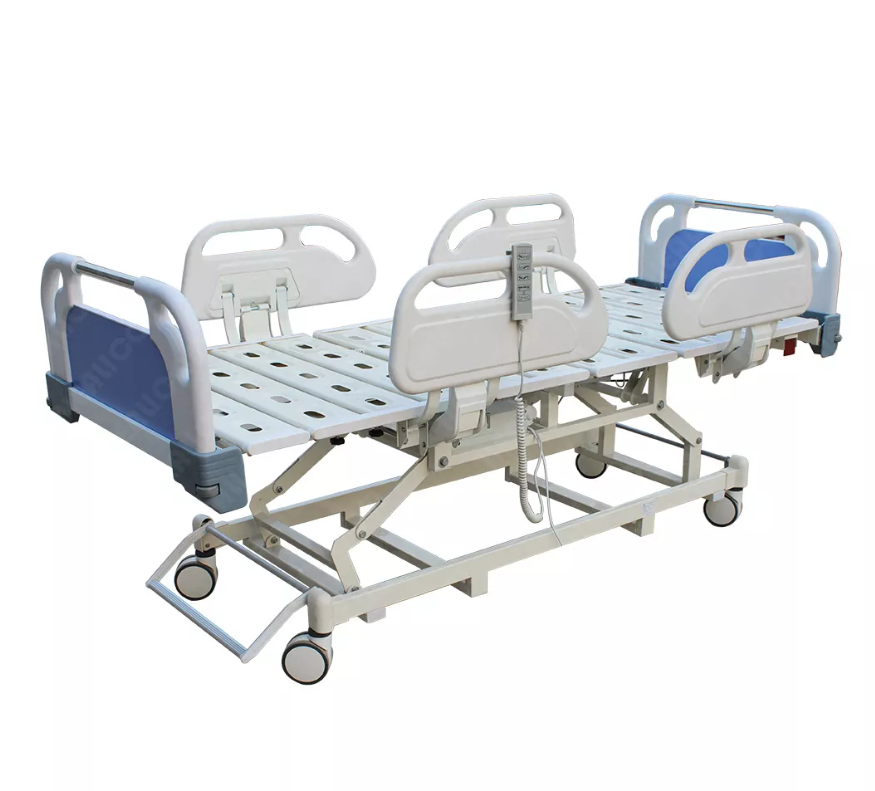

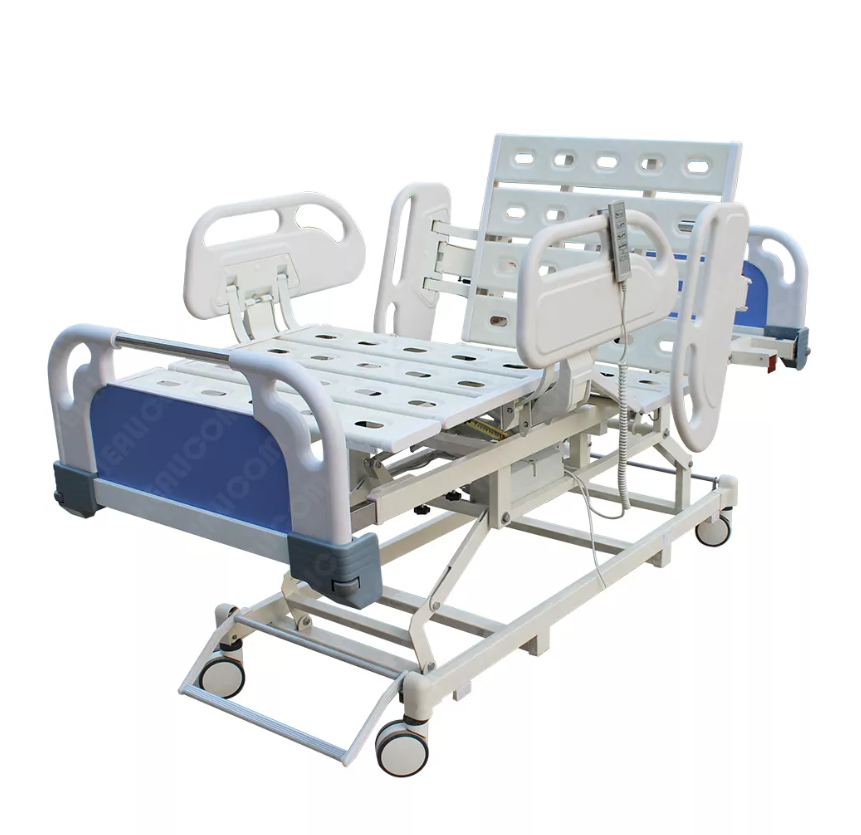

Adjustable High End 5-Function Electric Hospital Bed

Technical parameter

Specification: L2150×W960×H430-650mm

1. ABS bed head: The head and foot of the bed are blow-molded by ABS technology at one time, which is resistant to fading, aging, and easy to clean; the head and foot boards are symmetrical automatic lock sockets, which can be quickly disassembled, which can meet the needs of clinical emergency treatment. There is a transparent headboard card on the footboard of the bed, which can be inserted into the card.

2. The bed surface is made of high-quality cold-rolled steel plate by one-step stamping, the thickness is 1.0mm, and the concave multi-hole design is convenient for ventilation and has a non-slip function. There are no welding spots on the surface and steel pipe reinforcement on the back. The double support structure is adopted to extend the life of the hospital bed.

3. The bed frame is welded with a 30*60*1.2mm shaped square tube. Advanced welding technology. The welding quality is high. The bed body is firm. The load capacity is ≥240kg;

4. The whole bed adopts fully automatic assembly line spraying line, using plastic powder electrostatic spraying, the color is bright and the adhesion is firm.

5. Guardrail: 6-speed aluminum alloy guardrail (foldable), the overall is more beautiful, firm, and longer service life.

6. The four wheels adopt 125mm luxury mute double row wheels, which are stable and flexible in braking, convenient. Waterproof and dustproof. Double wheel cake design to increase the ground area and increase stability.

7. Four sets of safety voltage motors, one set of control box, and a full-scale handheld control panel. It can complete the five functions of back folding, leg folding, overall lifting, forward tilting, and backward tilting.

8. Back up 0-80°±5° Curved legs 0-35°±5°

Overall lifting 430-650mm

Forward and backward ≥15°

9. Each component of the bed body can be configured with different configurations according to different needs.

use:

This product is suitable for patients who cannot get out of bed or who are inconvenient to get out of bed. It provides them with special care services necessary for recuperation, treatment, travel and daily life to improve the level of care and improve the quality of life of patients.
