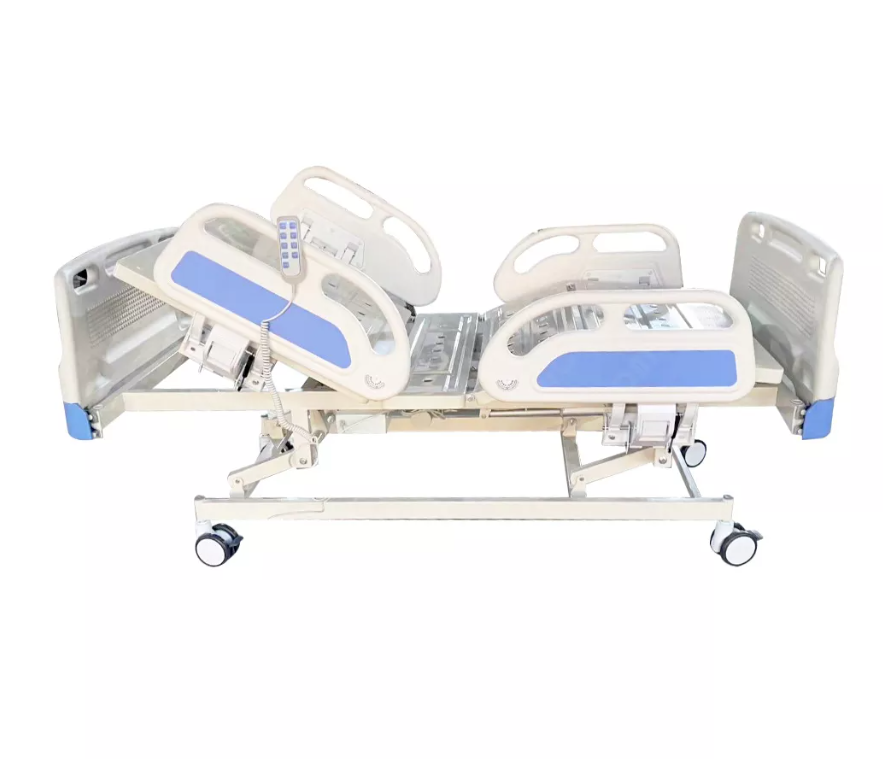

Multifuncational Electric Home Care Bed Electric Nursing Bed

1 Size:：2200×1050×450/750mm（The upper limit does not exceed 10%）

2 Power supply：220V、50HZ

3 Load≥260kg. Back rise≥80°. Leg rise≥40°. Adjust the back, legs, bed lift freely.

4 The bed head and the tail of the bed are detachable (the bedside card is made of plexiglass). The

diagonal has a socket for the infusion stand;

5 The guardrail adopts ABS four small guardrails, which can be moved up and down for safer use.

6 High-quality cold-rolled steel plate (60×30×1.1) on the bed surface, integrally stamped and formed

with round venting holes, and punched and bent with high-quality cold-rolled steel plate as support.

Bed frame and bed surface use electrostatic spray treatment, before electrostatic spray will pickling

and phosphating to ensure smooth surface and bright colors. Surface of the transmission screw

system is galvanized, made of high-quality steel, durable, and has idling limit protection.

7 t is equipped with 150mm diameter medium-controlled double-sided casters for higher stability,

reducing friction with the ground and easy to push the bed. Four wheels brakes are used for higher

stability.

8 Three motors and all-round adjustable manual control.

9 24V DC motor, domestic motor series, CE/UL and other electrical safety certification.
