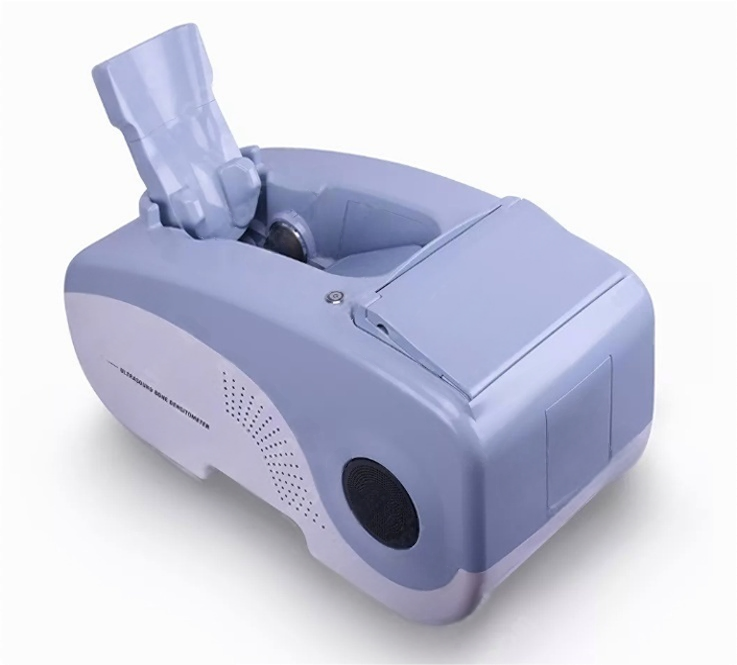

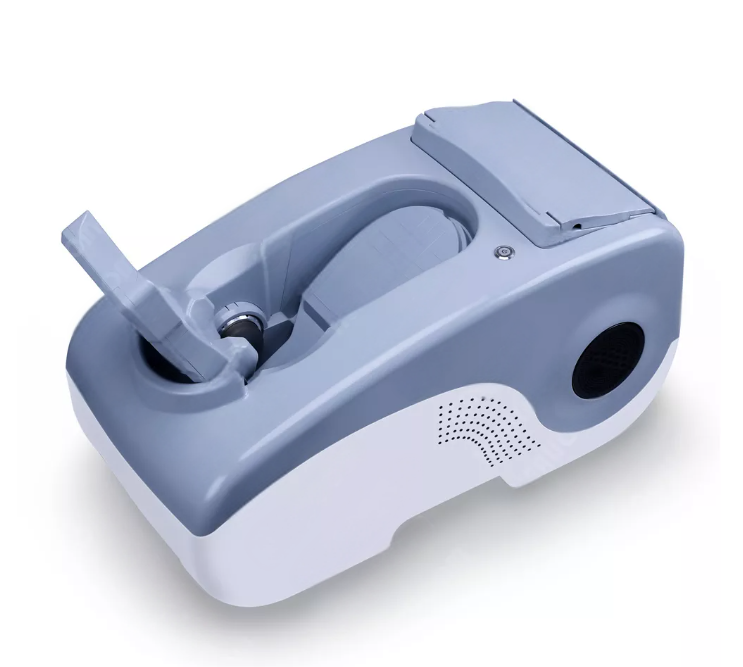

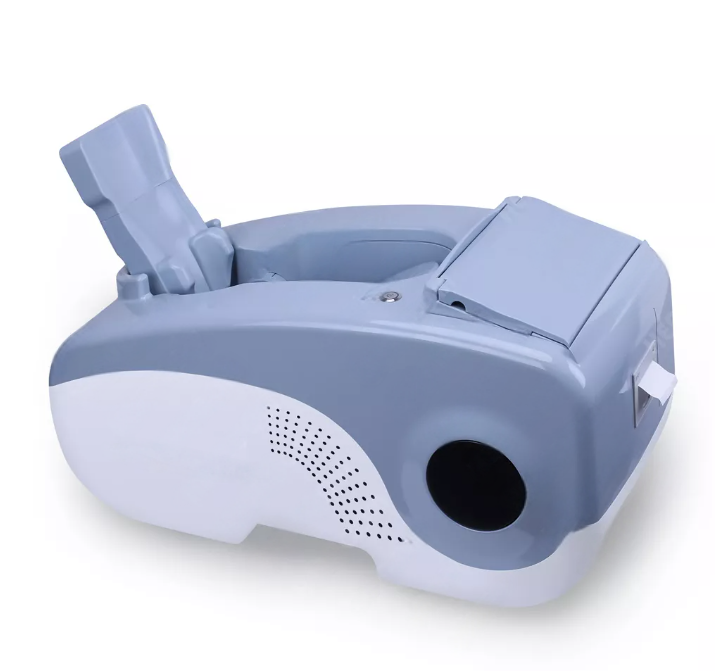

MJ3000 Medical Automatic Ultrasound Bone Densitometer for Calcaneus

MJ3000 Medical Automatic Ultrasound Bone Densitometer for Calcaneus

The equipment applies oil balloon probes, with elegant appearance and comfortable feelings. Measurement results are accurate as well as stable. Used a new hardware, the software interface is much more beautiful, more convenient to operate and easier to learn, bringing users excellent experience.

This equipment is suitable for all kinds of health and medical institutions, and can be used in diagnosis and assessment of the elderly osteoporosis and teenager bone growth.

Functions

Faster

Measure quickly and simply, especially suitable for a large number of patients census

More Accurate

Oil balloon Transducer, searching for the best signal al utomatically

Temperature compensation system, improving the measurement accuracy

Use global bone density database, according to patients race to select database

According to patients'foot size, choosing the different foot plate to reduce errors

More Economical

The oil balloon is special, which can be used permanently in the equipment life cycle

Consumables are ultrasound transmission gel and printing paper, economical Safer.

Painless, non-trauma and non-radiation, can be measured repeatedly

QUS quantitative ultrasound measuring, especially suitable for pregnant women, children and other special groups

More Authoritative

Use WHO' S Osteoporosis Diagnosis Standard

More Convenient

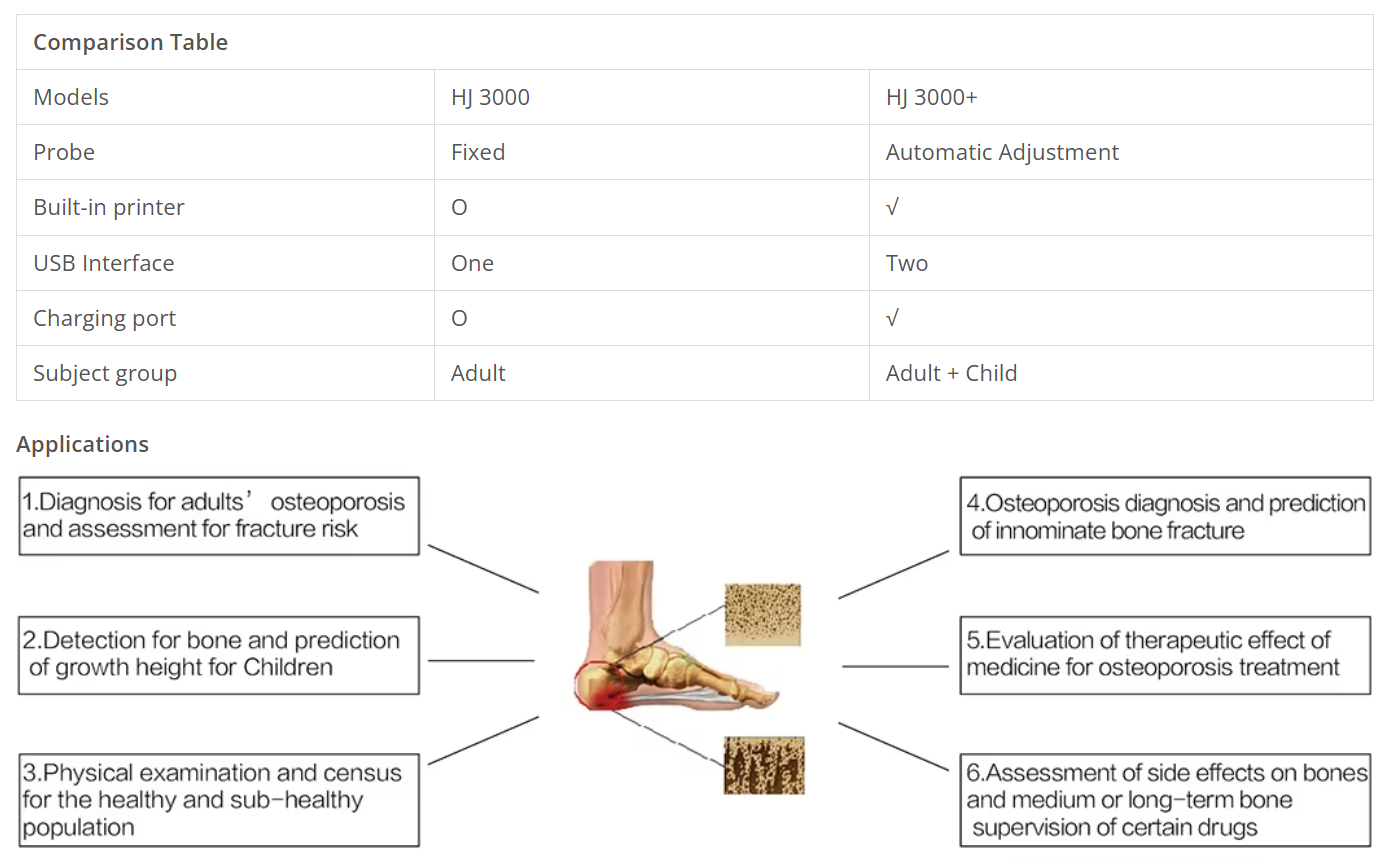

OSTEO HJ3000+ Model Adult / Child calf support can be replaced

Built-in printer can print quickly

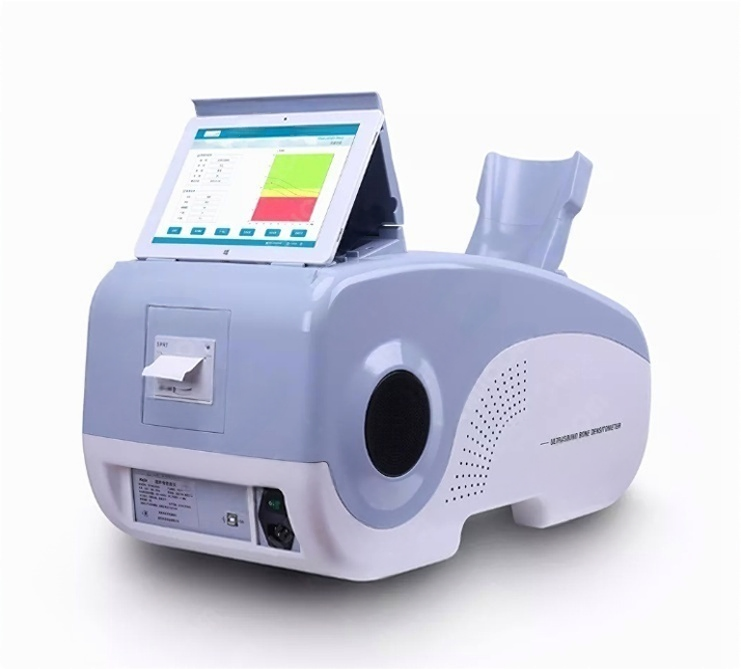

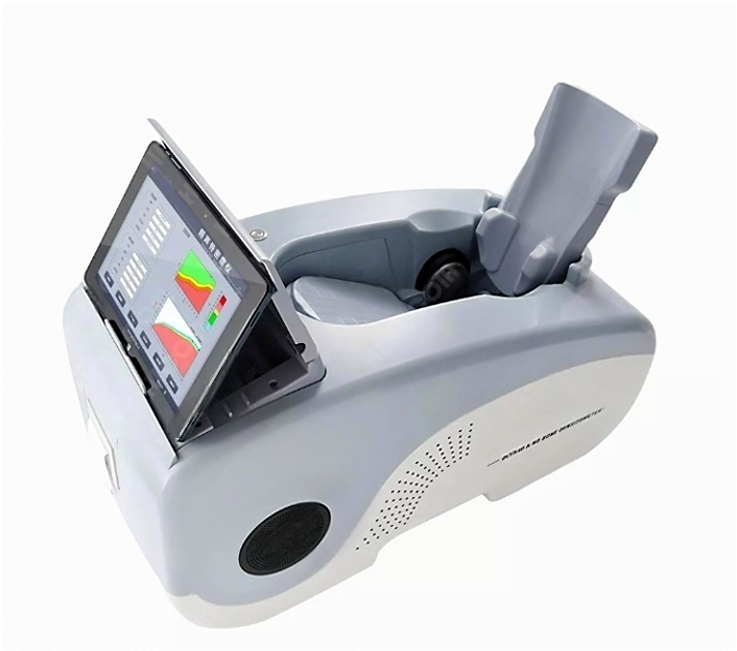

Can be connected to tablet, can be used anywhere

Product Parameters

Measurement Part: Calcaneus

Measurement Method: Single Element Flat Type, Double-sided ultrasound transmission and reception

Ultrasound Parameter: BUA, SOS, OI

Transducers Frequency: 0.5MHz±5%

Measurement Time: ≤25s

Ultrasonic probe diameter: 31.75mm

Operating system: Windows xp/7/8/10

Operating Temperature: 10-40°C

Humidity: 30-70%

Electrical Power Requirement: AC220±10%, 50Hz

Dimension (mm): 645mm x 330mm x 360mm

Weight: 13kg
