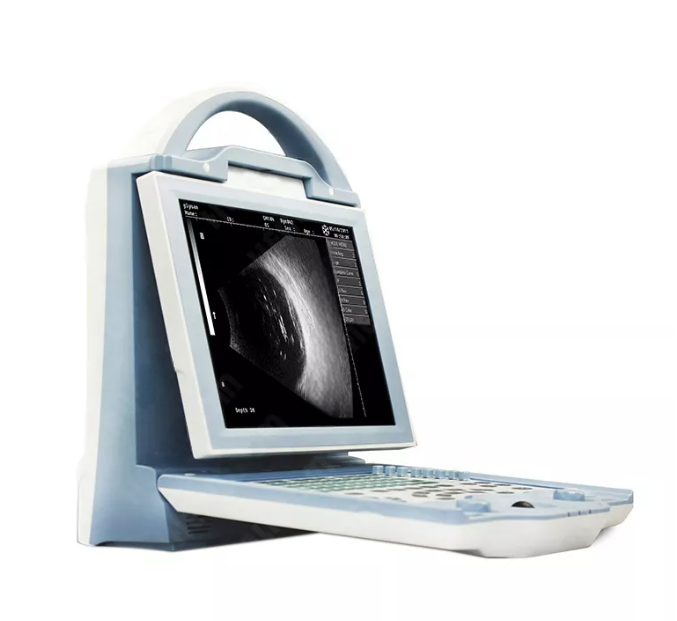

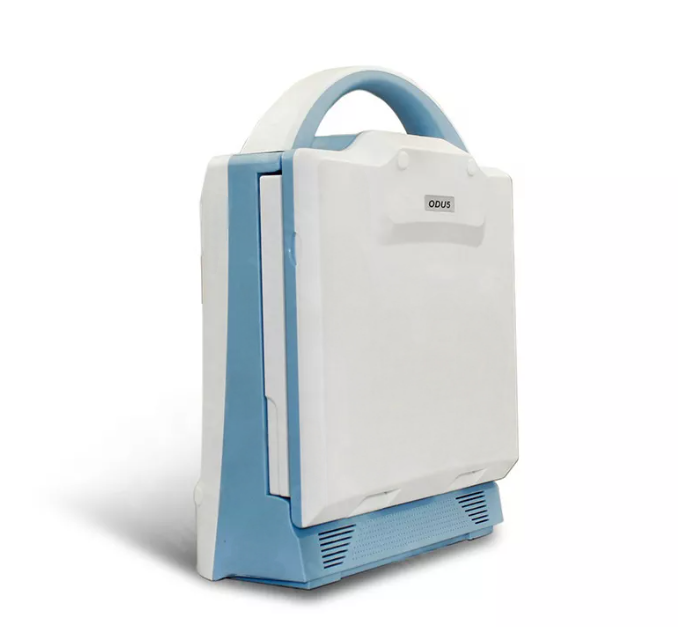

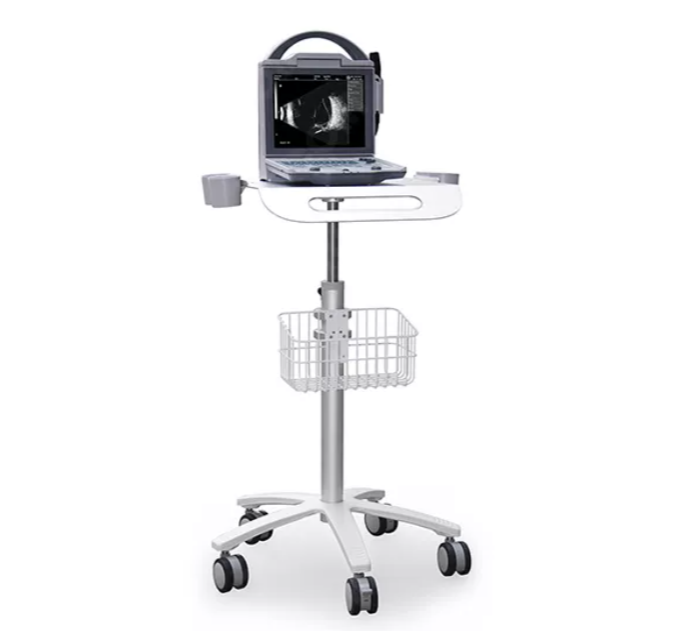

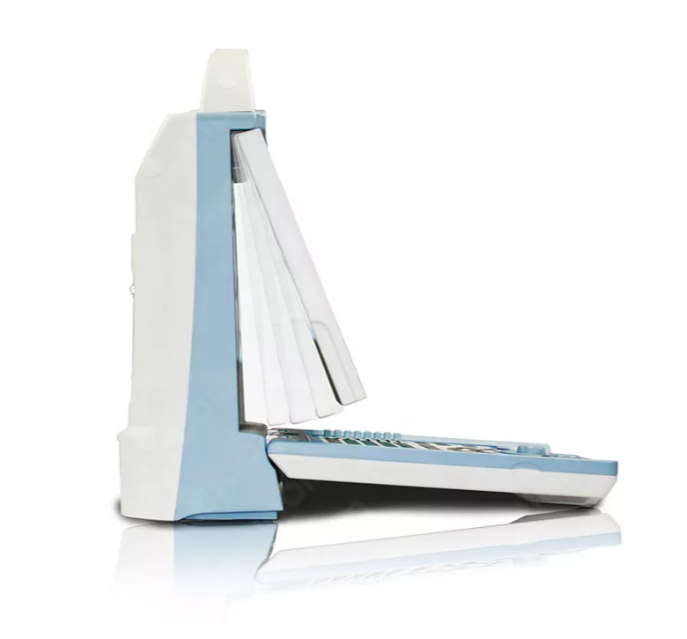

MO-300 Medical Portable Full Digital A / B Ophthalmic Ultrasound Scanner
Abundant data storage
Built-in 8GB D disk can store data, images and reports

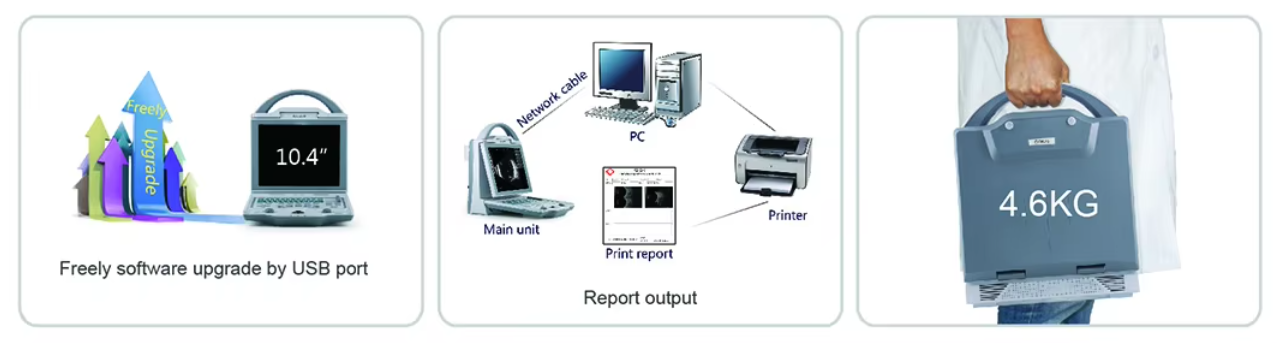

USB Support U disk, software upgrade and one-key storage
DICOM3.0 Network port makes data transmission easily
Practical workstation
The system comes with simple, practical, easy-to-work software to print and manage data
Report-print, screen copy, IOL report, case reports with images
A scan parameter
10MHz with Fixation Red Light
Resolution: 0.01mm
Accuracy: ±0.1mm
Measuring Range: 15~40mm
Measuring parameters: ACD, Lens, Vitreous body, AL
Measuring method: Contact and Immersion
Modes: Support Normal, Cataract, Aphakic and Special eye model
IOL formulas: SRK-T, SRK-II, BINKHORST, HOLLADAY, HOFFER-Q, HAIGIS Save up to 100 group of results

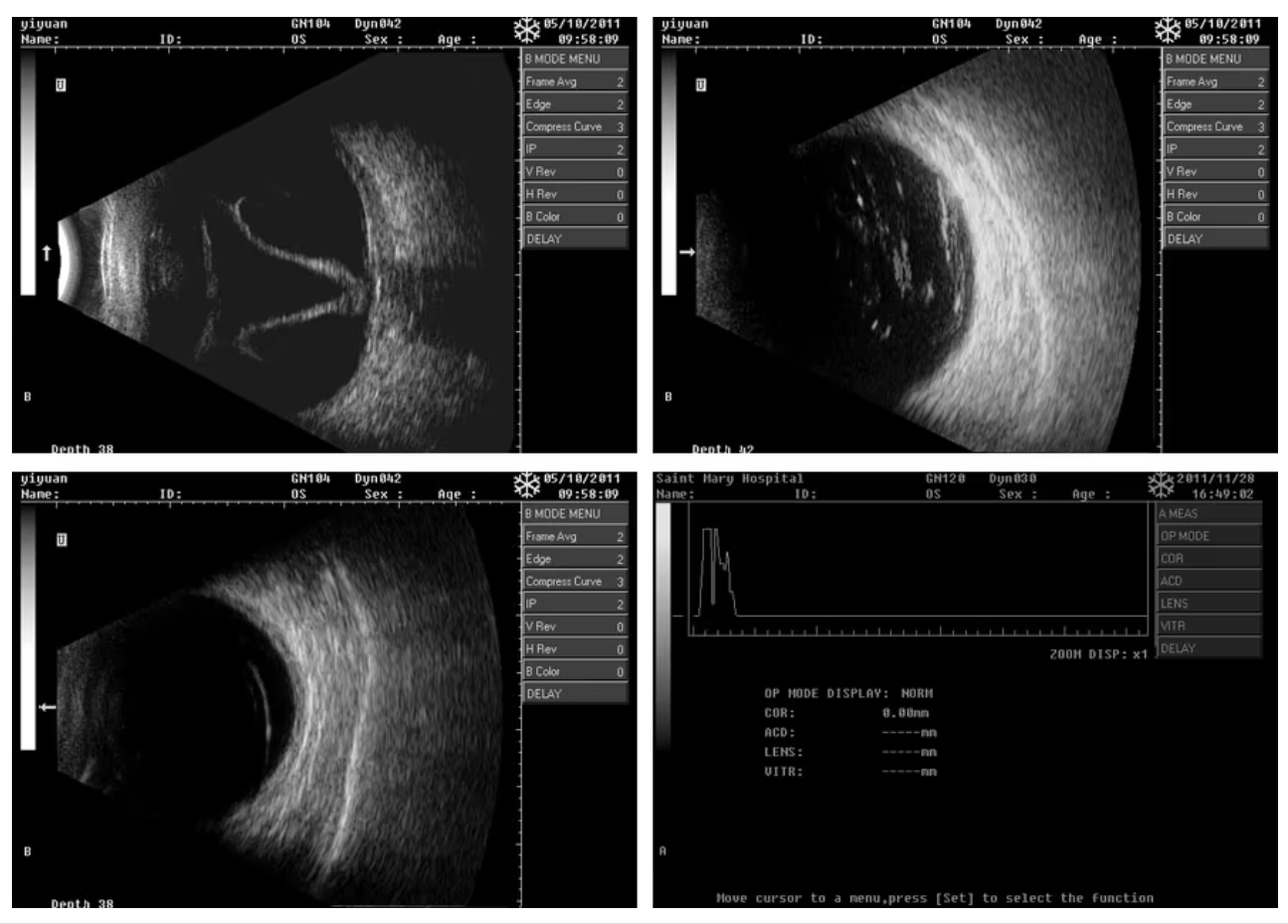

B scan parameter
10MHz probe, 10 frames/sec
Scanning Angle: 53°
Gain: 0~120dB adjustable, 8 steps manually adjustable TGC
Distance, circumference, area, volume and angle measurement
Pseudo-color: 8 kinds
Cineloop: 128 frames, measurement available
Post processing: 8 groups of curves
MO-300 Has Abundant data storage and Practical workstation
