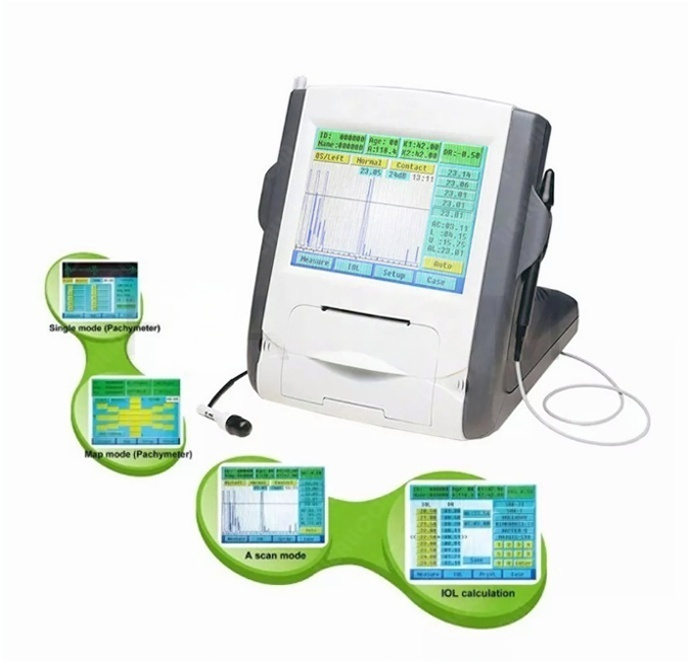

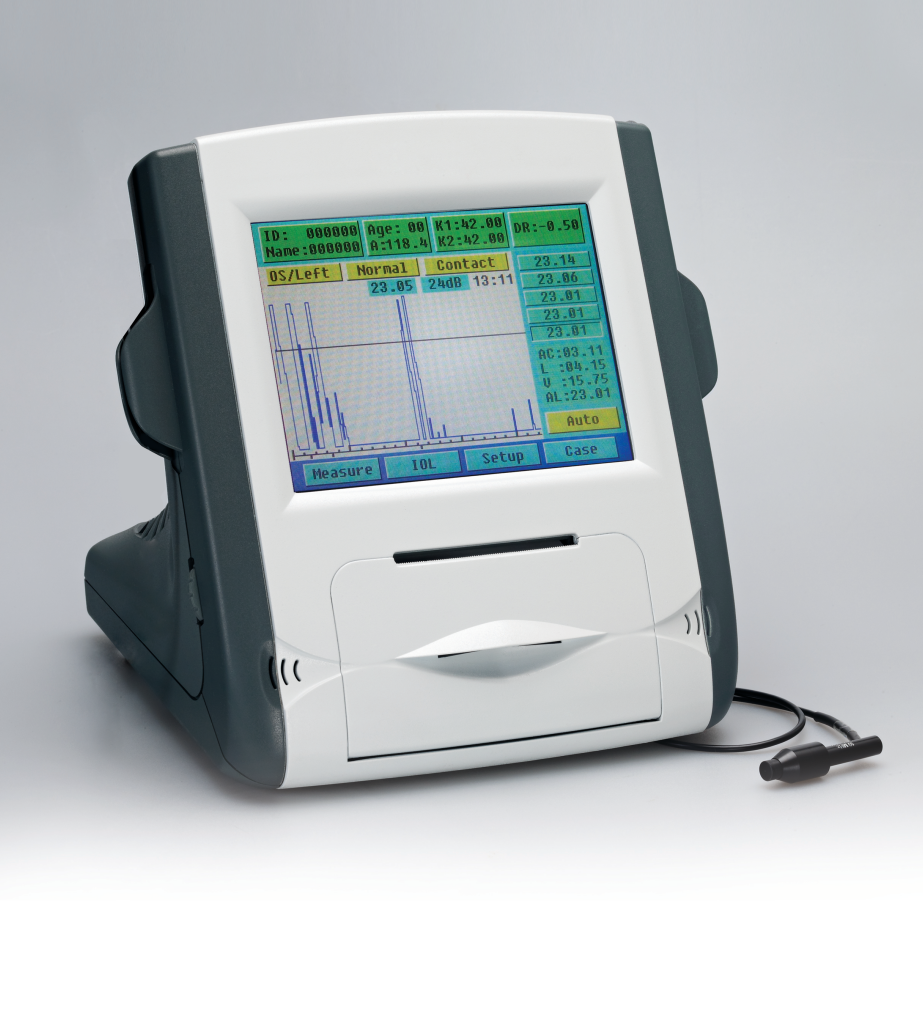

The MO-1000 Ophthalmic A-Scan/Pachymeter is a state-of-the-art diagnostic device designed for comprehensive eye examinations. Equipped with macular recognition function, it provides precise measurements of axial length, anterior chamber depth, and lens thickness, essential for intraocular lens (IOL) calculations. Its advanced automatic gain compensation capability ensures accurate measurements of both central and peripheral corneal thickness, making it an invaluable tool for refractive surgery planning and postoperative evaluation. The MO-1000 is widely used in ophthalmology for preoperative assessments, such as cataract and LASIK surgeries, as well as for monitoring postoperative outcomes. With its high accuracy, user-friendly design, and advanced features, it enhances diagnostic efficiency and supports optimal patient care in refractive and corneal procedures.MO-1000 Ophthalmic Ultrasound A Scan with Pachymeter
A Scan Probe
Type: 10MHz imported small - sized probe with built - in luminotron.
Measuring Range: 15mm - 40mm.
Measurement Precision: ±0.05mm. Equipped with macula lutea trace function.
Measurement Items: Anterior chamber depth, lens thickness, vitreous body length, total length, and average.
Measurement Methods: Immersion and contact.
Eye Modes: Phakic/Aphakic/Dense/various IOL.
IOL Formulas: SRK - II, SRK - T, BINKHORST - II, HOLLADAY, HOFFER - Q, HAIGIS.
Data Management: Allows for easy entry of name and ID for convenient archive checking.
Storage Capacity: Can store 10 cases, with 5 readings per case.
Output: Provides A - scan waveform and IOL calculation sheet.
P Scan Probe
Type: 20MHZ, with a 45 - degree angle for easier operation.
Resolution: 5um.
Measuring Range: 150um - 1500um.
Display Modes: SINGLE mode and MAP mode. Displays ultrasound waveform during measurement.
Measurement Averaging: Each group represents the average of 20 measurements.
Value Switch: Enables switching between IOP measured value and actual value. Also allows input of name, ID, and operator's name.
Other Features
Display: Features a large - sized color liquid - crystal screen.
Input Method: Touch - screen input for user - friendly operation.
Curve Freezing: Supports both Manual and Auto modes, controlled by pedal.
Printing: Comes with a built - in high - speed thermal printer.
