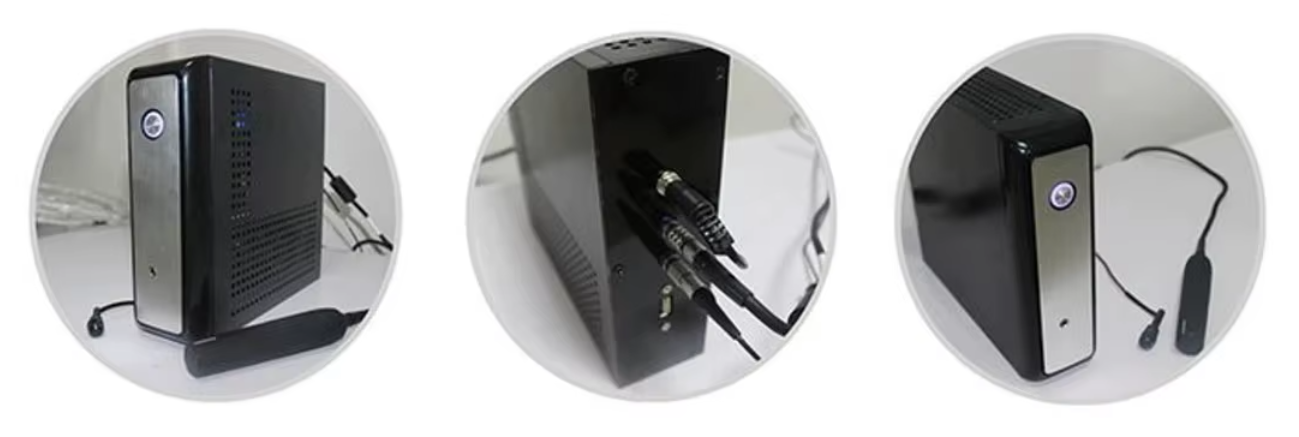

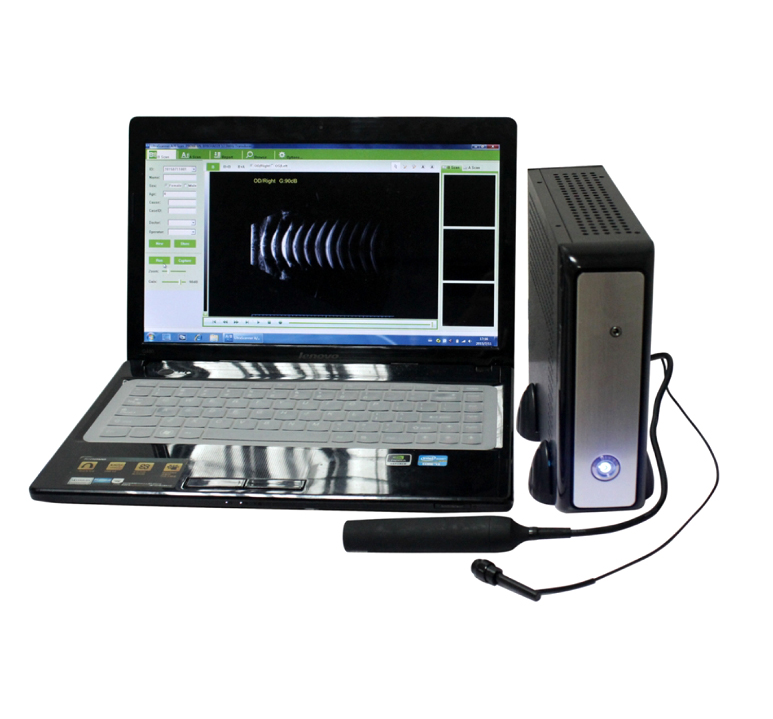

MO-200 Ophthalmic A/B ultrasound box scanner

MO-200 Ophthalmic A/B ultrasound box scanner

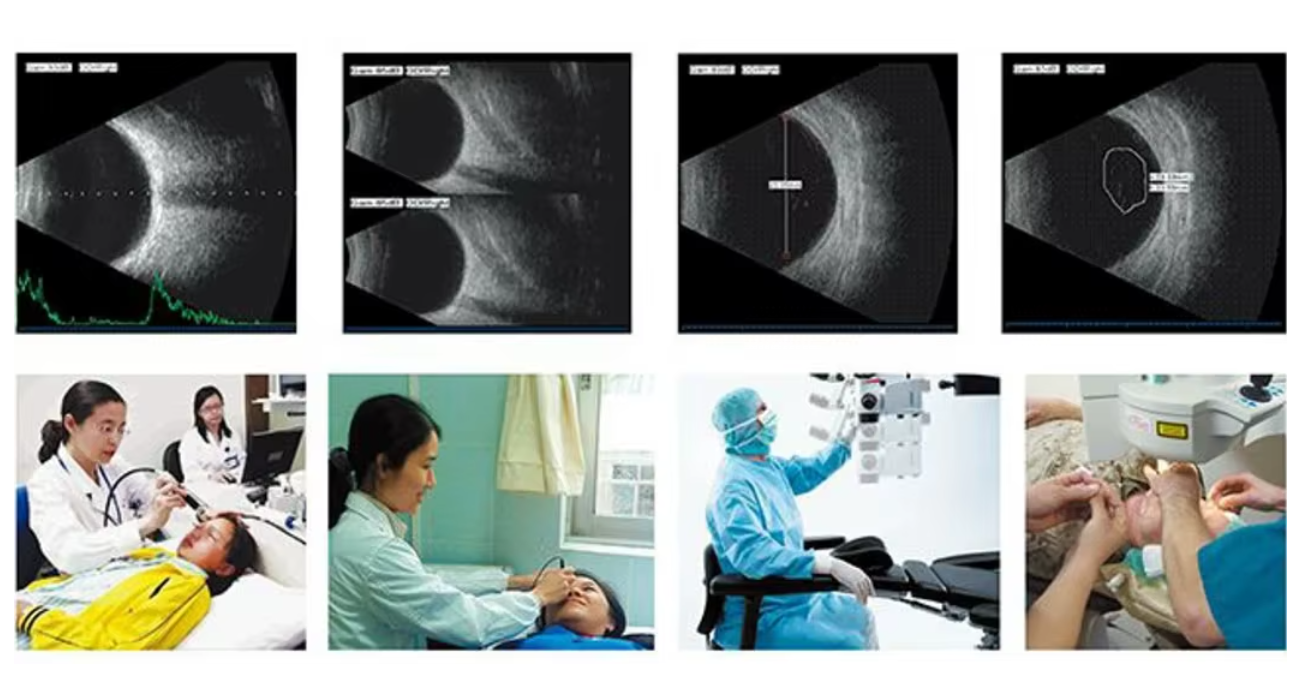

MO-200 Can be diagnosed vitreous opacity, retinal detachment, eye base tumors etc. eye diseases.

A scan is used to measure anterior chamber depth, lens thickness, axial length, calculate diopter of implant IOL as well.

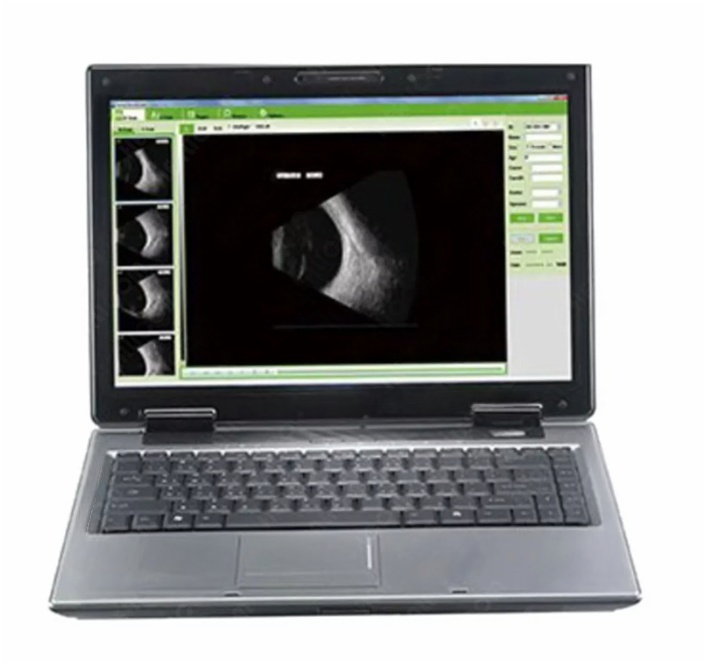

B scan:

Frequency: 10MHz/20MHz (optional), Magnetic driven, noiseless

Scanning Mode: Sector Scanning

Magnify: Multi continuous magnification, Real-Time magnification

Resolution: Lateral ≤0.3mm; Vertical≤0.2mm

Geometry position precision: Lateral ≤10%;Vertical≤5%

Depth: 60mm

Enhance the part of vitreous body and retina

Gain of probe: 30dB-105dB

Scanning Angle: 53°

Gray Scale: 256

False Color: Multi colors. OCT

measurement type: multigroup distances, perimeters and areas

Image postprocessing: multiple curves processing, Pseudo-color processing curve

Movies: 100 images movie review, AVI JPG format image output

A scan:

Frequency: 10MHz, with LED

Depth: 40mm

Precision: ±0.05 mm

Measurement: Anterior chamber depth, lens thickness, vitreous body length, total length and average Eye mode:

Phakic / Aphakic /Dense / Various

L IOL Formula: SRK-II, SRK-T, HOFFER-Q, HOLLADAY, BINKHORST-II, HAIGIS Stat.

Calculation: Average and standard deviation

Store: 10 Scanning results for each eye
