Cassette detector per ISO 4090,fits in bucky139μm pixel pitch,with 16 bit ADC for more image detailsDirect deposition Csl for better image quality with lower doseStable iSync+Automatic Exposure Detection(AED)Highly reliable,flexible tetherSupports a fast and efficient workflowHigh Quality Wired X-ray Flat Panel

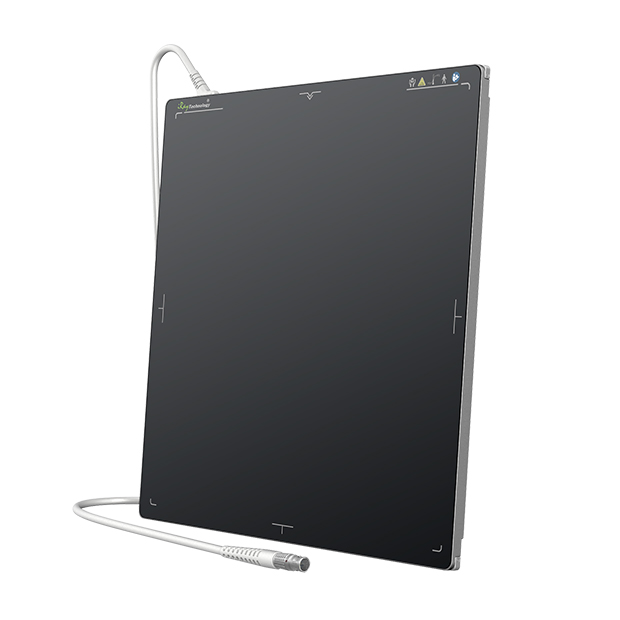

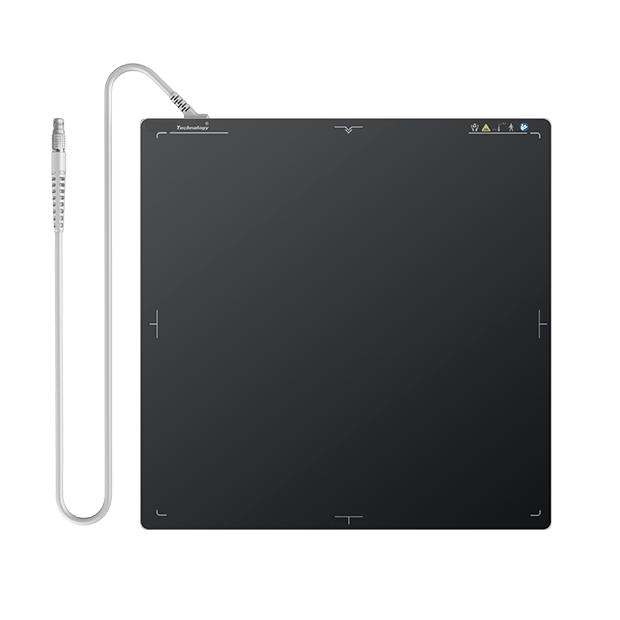

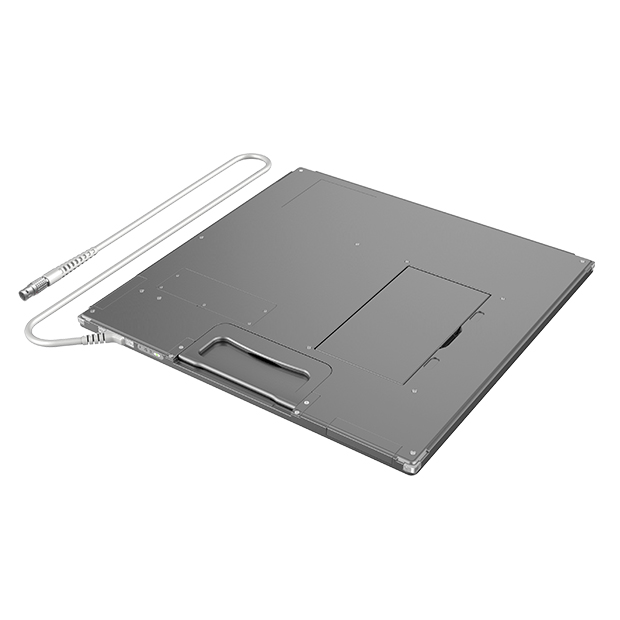

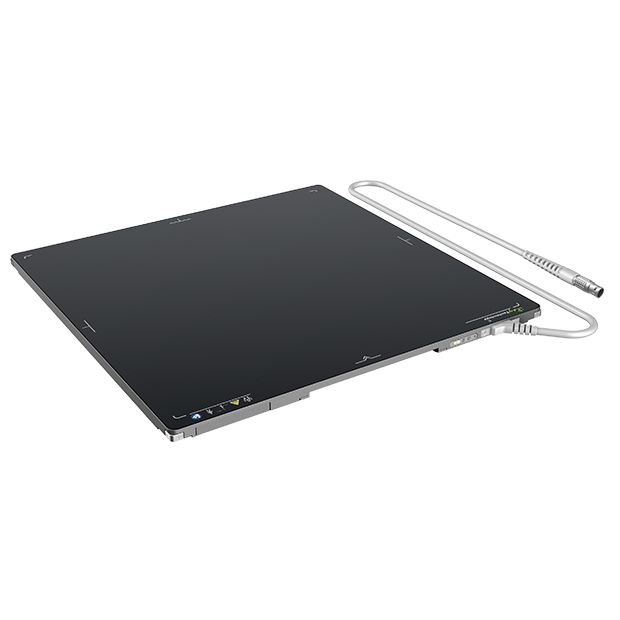

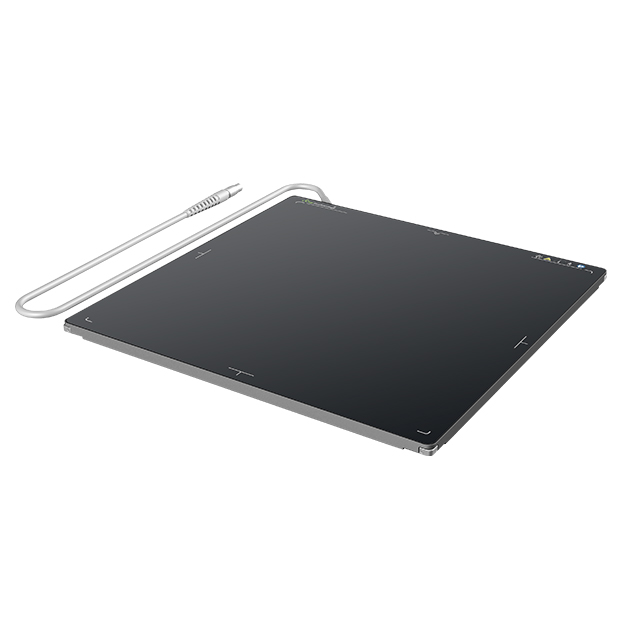

Model：Venu 1717X
| Detector Technology | Amorphous Silicon | Trigger Mode | AED (optional)/Software /Prep |
| Scintillator | Csl | Preview Image Time (s) | 3 |
| Active Area(mm²) | 427×427 | Full Image Time (s) | 5 |
| Pixel Matrix | 3072×3072 | Dimension(mm) | 460×460×15 |
| Pixel Pitch (μm) | 139 | Weight (kg) | 4 |
| Spatial Resolution (lp/mm) | 3.6 | Operating Temperature(℃) | 5~35 |
| AD Conversion (bit) | 16 | Storage &Transport Temperature with Package(℃) | -10~55 |
| Power Consumption(W) | 30 | Operating Humidity(%RH) | 30~80(Non-Condensing) |
| Data Interface | GigE | Storage &Transport Humidity with Package(%RH) | 10~90(Non-Condensing) |
