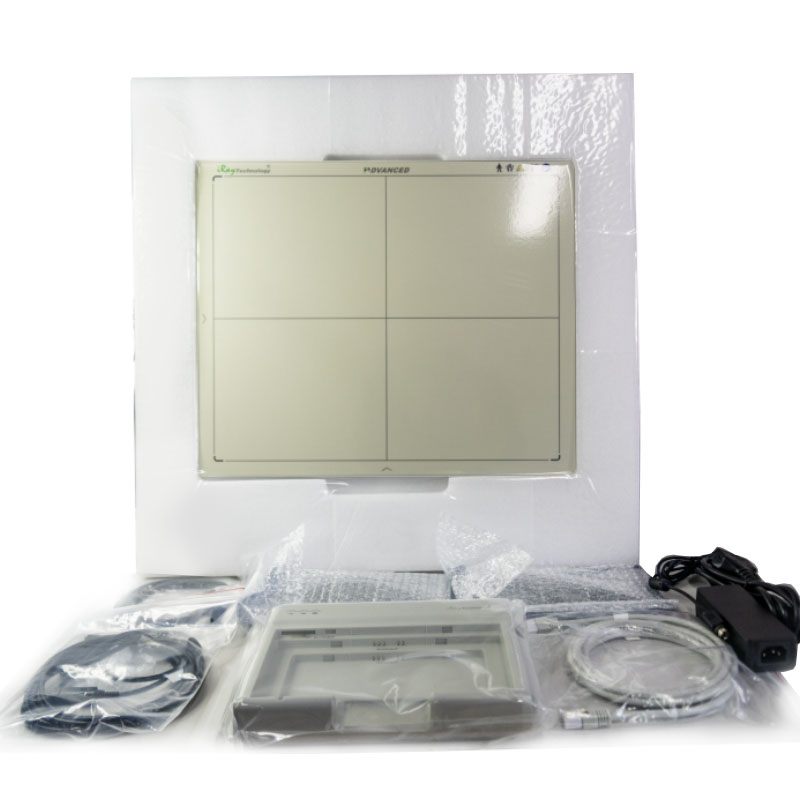

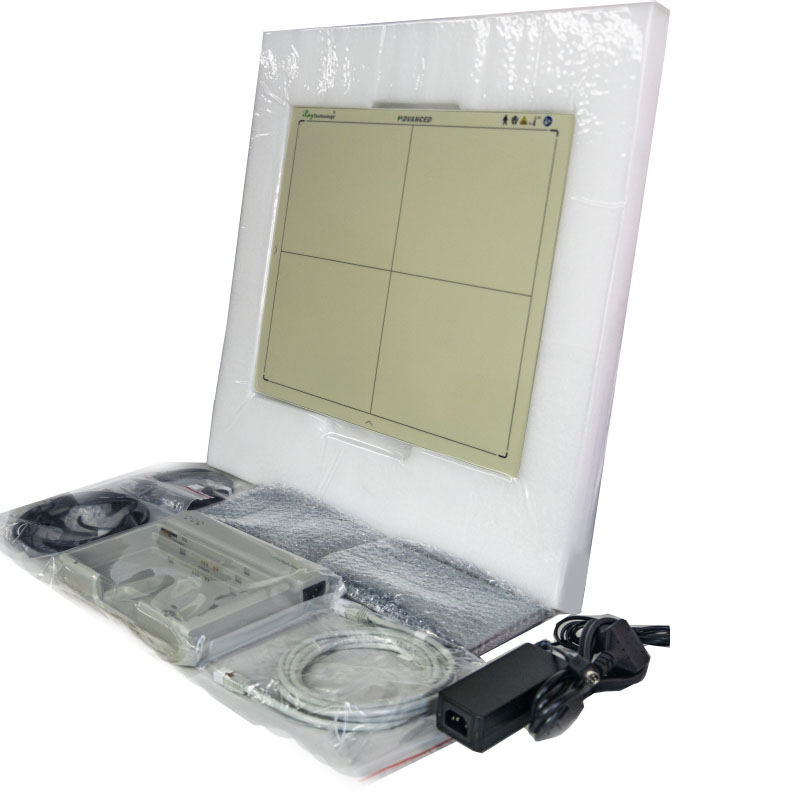

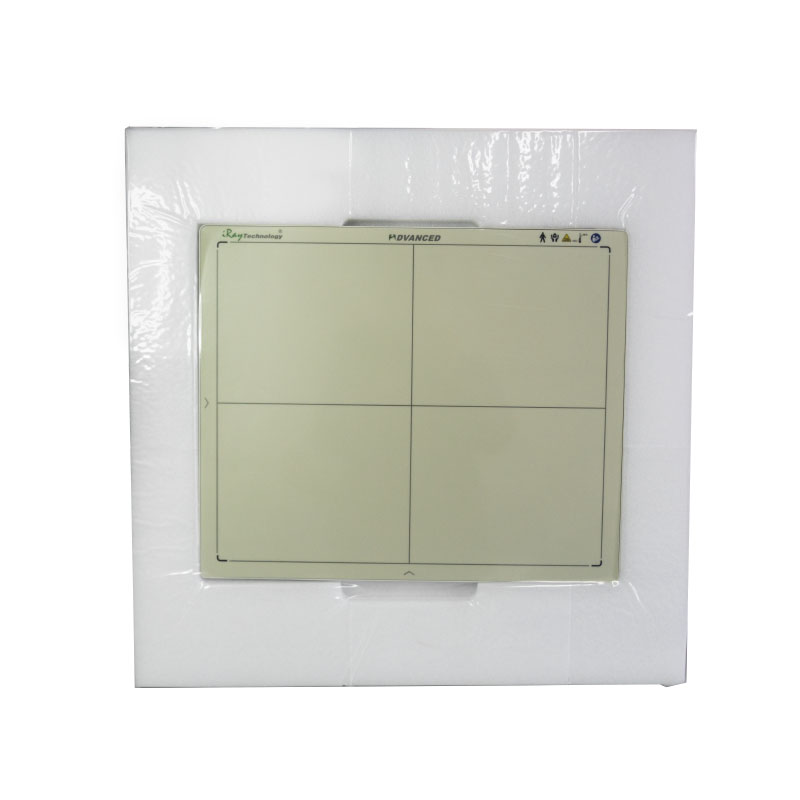

Medical Equipment Portable Wireless X-ray Flat Panel Detector
Model:Mars 1717V
| Detector Technology | Amorphous Silicon | |
| Scintillator | Csl | |
| Active Area (mm²) | 427×427 | |
| Pixel Matrix | 3072×3072 | |
| Pixel Pitch (μm) | 139 | |
| Spatial Resolution (lp/mm) | 3.6 | |
| AD Conversion (bit) | 16 | |
| Battery Autonomy (h) | 5 | |
| WIFI | 2.4G and 5G,IEEE802.11 a/b/g/n/ac | |
| Trigger Mode | AED (Optional)/Software | |
| Full Image Time (s) | Typ.5 | |
| Dimensions (mm) | 460×460×15 | |
| Weight (kg) | 4.6 | |
| Static Loading | 150kg Uniformly | |
| Ingress | Protection | IPX1 |
| Operating Temperature(℃) | 5~35 | |
| Storage &Transport Temperature with Package(℃) | -20~55 | |
| Operating Humidity(%RH) | 10～90(Non-Condensing) | |
| Storage &Transport Humidity with Package (%RH) | 5～95(Non-Condensing) | |
Dual band (2.4 and 5 GHz)wireless support with easy sharing
